Bosch VMS

Setup

See the Data Servers page for information on configuring driver communication.

Note: Asset Multi-Select is not available for this integrated system.

Compatibility

The Bosch VMS integrated system is compatible with Bosch VMS v12.

Note: Bosch VMS cameras can only be called up with Bosch Operator Client monitors. This system is not compatible with the VideoFusion or the Video Viewer object. Video can only be called up within a Bosch Operator Client monitor.

Prerequisites


Software	Minimum Version
Bosch Video Management System	12
IPFusion — Bosch VMS	1.0
.NET Framework	4.7.2

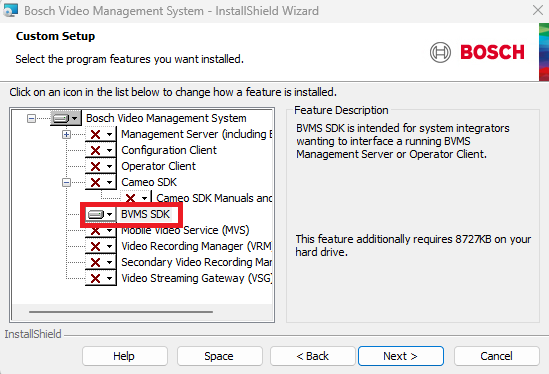

The Bosch Video Management System SDK must be installed on the data server running the IPFusion — Bosch VMS Service. Here is a image showing recommended installation settings:

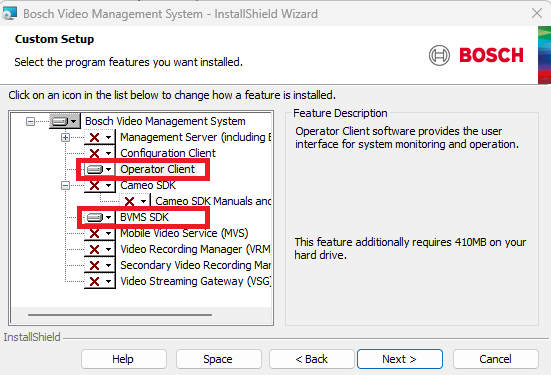

The Bosch Video Management System SDK must be installed on the computers running Bosch VMS Operator Client. Here is a image showing recommended installation settings:

Note: The Bosch Video Management System SDK must be installed in the default location (i.e. C:\Program Files\Bosch\VMS).
In Configuration Client → User Groups → Specific Group → Application Permissions → Integration, the BVMS Server SDK BVMS Client SDK (allows connection to Operator Client) must be enabled to allow users to log into Client SDK application for certain user groups.

Note: Operator Client must be running and logged in for the IPFusion connection to work. When the Operator Client is not logged in, IPFusion will be unable to detect camera statuses or submit commands to Bosch VMS.
Alarm configuration must be set on cameras in BVMS to receive status.
IPFusion determines camera status via Bosch VMS camera alarms. Therefore, if alarms are not enabled, IPFusion will be unable to display accurate camera status.
When completing your setup, be sure to have the Bosch VMS documentation available for reference.

Ports

These ports must be open in your network firewall for the integration to work.


Purpose	Default Value	Configurable
Dataserver	9671	Yes
Debug Tools	9672	No

Communication Configuration

In the integrated system configuration panel, you will find the Communication Settings. The below information is required.

Note: It is recommended to use the same login information for both the Operator Client and the Designer settings.

Table 1. Authentication
Is Single User	Check this box if all Workstations are using the same username and password to connect to their Operator Clients.
Username	The username for logging into the Bosch server. This is usually a user created specifically for the Runtime connection. This is only enabled if Is Single User is checked, otherwise use the table below to fill in the credentials for each Workstation. The user must be a member of the Admin Group with these permissions enabled: BVMS Server SDK BVMS Client SDK Admin Group
Password	The password for logging into the Bosch server. This is only enabled if Is Single User is checked, otherwise use the table below to fill in the credentials for each


Workstation	The description of the Workstation in the project. Each Workstation may have its own operator client.
Operator Client Address	The address for the machine the operator client for this Workstation is running on. This is only enabled if Is Single User is unchecked.
Username	The username for logging into the Bosch server. Only fill this in if Is Single User is unchecked. This is usually a user created specifically for the Runtime connection. The user must be a member of the Admin Group with these permissions enabled: BVMS Server SDK BVMS Client SDK Admin Group
Password	The password for logging into the Bosch server. This is only enabled if Is Single User is unchecked.

Note: Red X indicates an invalid or out of range value given for field.

Assets

Camera

The camera asset is designed to represent a camera in the Bosch VMS system.

Required Property Grid Fields


Joystick Control	If joysticks are enabled for this camera system, this checkbox gives the options of enabling and disabling a camera from joystick control.
Logical Number	The unique identifier in the Bosch system for this camera.

View all properties

Supported States


Normal	The asset is online and in its default state.
Fault	An issue has been detected in a connected asset.
Masked	The asset has been masked over its true state.
Acknowledged	An asset alarm has been acknowledged.
No Communication	Communication has been lost with the driver, camera, or Bosch server. Note: This status is required in all status tables.

See the Configure a Status Table page for more information on configuring status tables.

Supported Commands


Mask	Mask the asset's true state.
Acknowledge	Acknowledge an asset alarm.
Reset	Resets the asset to its true hardware state.
Cancel	Deselects all selected assets.
New Note	Adding the New Note Command to your Command Table subscribes this asset to Notes, allowing an operator to attach Notes to this asset in Runtime.
Workflow Trigger	Allows users to trigger Workflows to create custom commands.

Table 2. For PTZ Capable Cameras
Name	Parameters	Description
PTZ Pan/Tilt	Pan Speed — The speed/direction to move the camera horizontally. Leave at zero for no horizontal movement. Tilt Speed — The speed/direction to move the camera vertically. Leave at zero for no vertical movement.	Moves the camera in a configured direction.
PTZ Zoom	PTZ Speed — How quickly the camera zooms in/out.	Zooms the camera in or out.
Stop PTZ		Stops any currently running PTZ commands on the camera.
PTZ Preset	Preset Number — The number for the PTZ command.	Uses a preset PTZ command.

See the Command Tables page for more information on configuring command tables.

System

This asset represents the connection to the Bosch VMS system.

View all properties

Supported States


Acknowledged	An asset alarm has been acknowledged.
Fault	An issue has been detected in a connected asset.
Masked	The asset has been masked over its true state.
No Communication	Communication has been lost with the driver or asset. This status can also occur if the communication configuration for the system or asset is invalid. Note: This status is required in all status tables.
Normal	The asset is online and in its default state.

See the Configure a Status Table page for more information on configuring status tables.

Supported Commands


Acknowledge	Acknowledge an asset alarm.
Cancel	Deselects all selected assets.
Mask	Mask the asset's true state.
Reset	Resets the asset to its true hardware state.
New Note	Adding the New Note Command to your Command Table subscribes this asset to Notes, allowing an operator to attach Notes to this asset in Runtime.
Workflow Trigger	Allows users to trigger Workflows to create custom commands.

See the Command Tables page for more information on configuring command tables.

Workflow Integration

System Commands

System commands are commands executed through Workflows at the system level. For more information about Workflows, see the Workflows section.

Callup Live Camera to BVMS Monitor

Displays a camera stream to a specified monitor.

Table 3. Parameters
Camera Asset ID	The ID of the camera to display the video for.
Monitor Number	The ID of the Bosch Operator Client monitor to display the video feed on.
Tile Number	The ID of the video tile to display the video stream to.

Trigger Camera Preset

Moves a PTZ camera into a specific position.

Table 4. Parameters
Preset Number	The ID of the preset command. Note: This command only accepts integer values. If a string value is required, please use the camera asset PTZ preset command instead.
Camera Asset ID	The ID of the camera asset to execute the PTZ command on.

Set Panoramic Predefined Position

Switches to a specific part of the panoramic camera view when the camera is displayed on the video monitor.

Table 5. Parameters
Monitor Number	The ID of the Bosch Operator Client monitor to display the video feed on.
Tile Number	The ID of the video tile to display the video stream to.
Preset Number	The ID of the preset command. Note: This command only accepts integer values. If a string value is required, please use the camera asset PTZ preset command instead.

Troubleshooting

Runtime Cannot Connect to Bosch

If the user configured in the project does not have sufficient permissions to the system, Runtime will display the system and all assets as being in No Communication. See the Communication Configuration section for the required permissions. Once the permissions are correct, restart Runtime.

A Correctly Configured Camera is Showing a No Communication Status

If a camera has been correctly configured and is online, but still showing as No Communication in Runtime then the camera alarm title may have been changed. It is recommended to keep this value at its default setting. Once the value has been reverted, the camera will come back into a normal state.

General

Logs from the driver and Runtime can be viewed in the Debug Tools client. These messages contain information which can provide further context for issues during initialization, or while actively running. This can help diagnose problems.

Unable to Get Camera Status

Please review ALL pre-requisites. This specifically will look at User Group permissions, Event triggers, and alarm names.
