Standard Operating Procedures (SOPs) are triggered by particular events. Set the
triggers for starting Workflows that must be acted on by an operator or operate in the
background.
Triggers for workflows are set in the Workflow Properties
panel.
-
In Project Explorer > Workflows double-click on the workflow you
wish to modify. The Properties panel will appear.
-

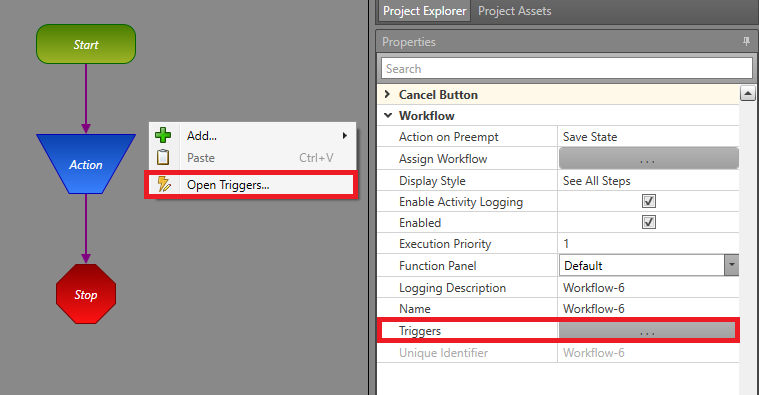

There are a few ways to access the Trigger Browser:
- In Properties > Workflow highlight Triggers and
double-click the ellipsis (…) field to the right. The Triggers
panel will open in your work area.
- Right-click the canvas and click on Open
Triggers.
- Double-click on the Start block.
- Double-click on a blank spot on the canvas.
-
Click Add at the bottom of the panel to see an expandable tree menu of
your assets, maps, layouts and other features of your project. These are the
Objects in your project that can trigger a Workflow when an Event listed to the
right occurs.
-
When an Object and a corresponding Event are selected, the
Expression field on the bottom of the Trigger Browser will fill
in.
-
A workflow can be assigned more than one trigger. Click Add in the
Trigger panel.
-
Click OK.
