Add a Rule
Rules can be useful for facilitating the transfer of responsibility between Workstations in projects. In this example, creating a new Rule allows cell blocks to have their control transferred to another Workstation.
-

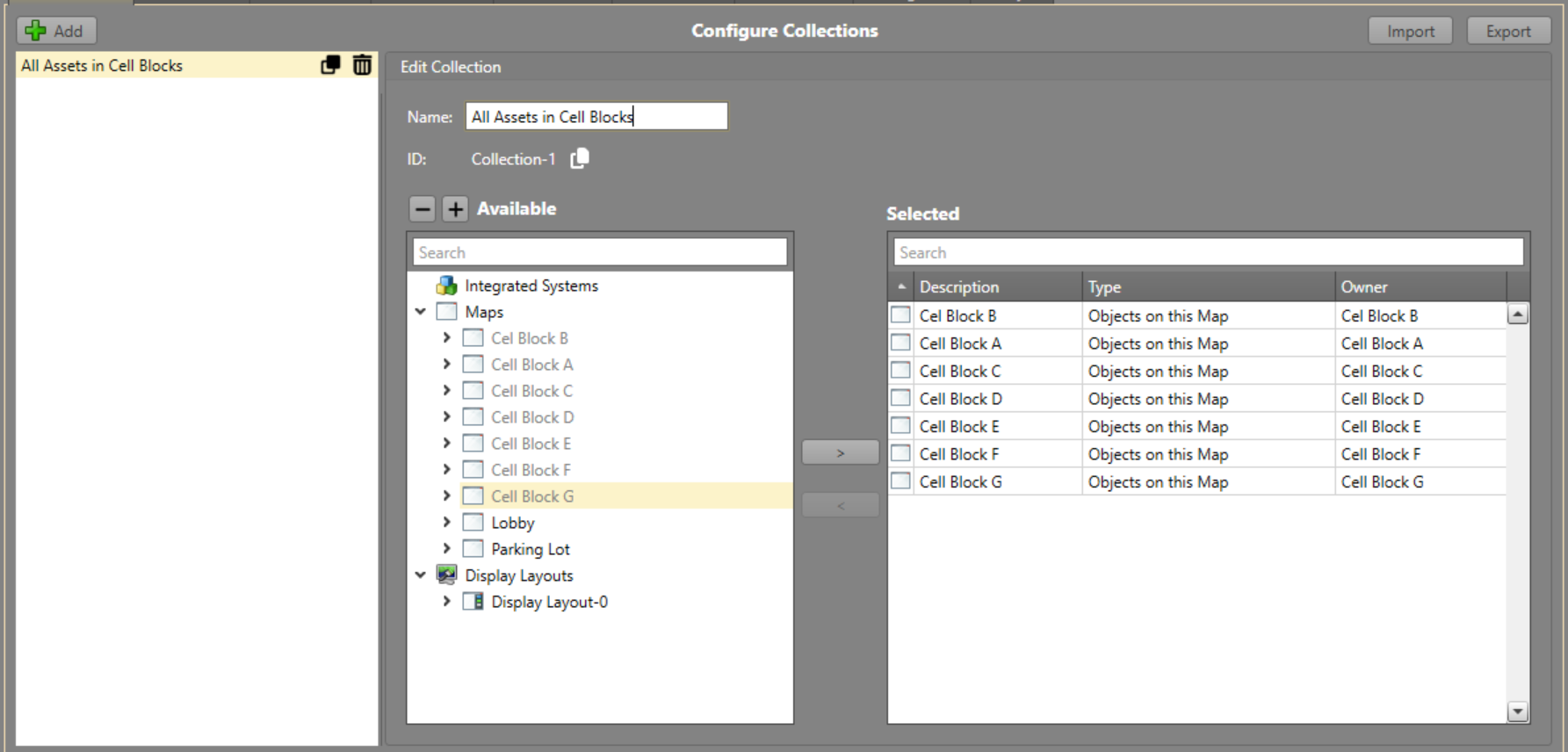

Before using Rules, configure the assets you want to use
by using Collections:
-

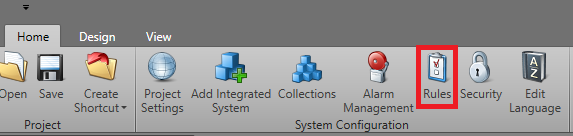

In .
-
Click
to

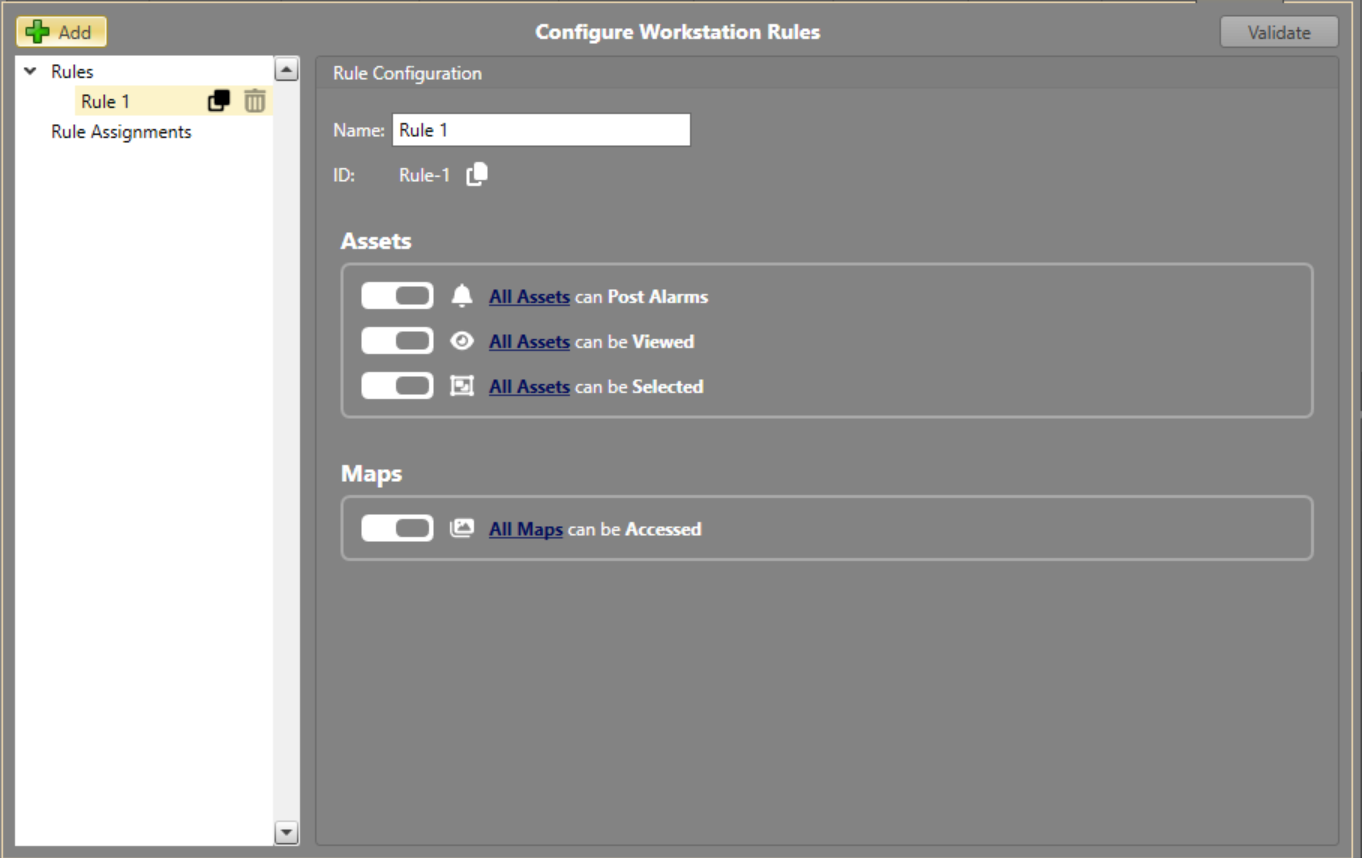

create Rule 1.
-

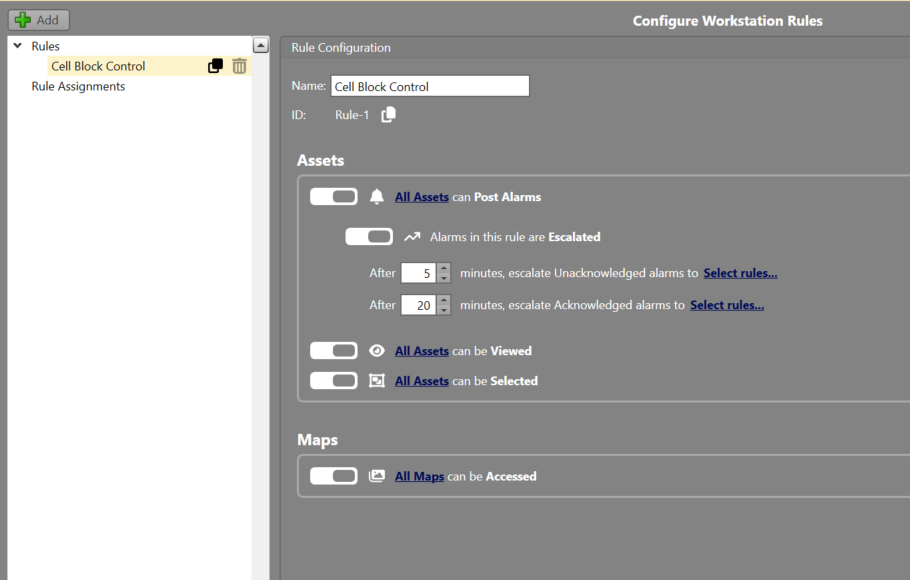

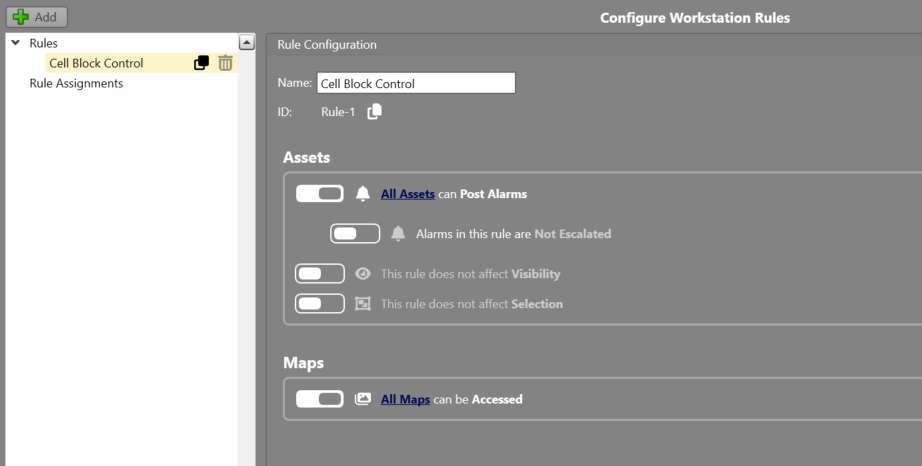

Rename the Rule, and click on All Assets under the
Assets section.
-
Decide what assets and Maps should be included in the Rule. If the Rule is not
applicable, switch the toggle to off.
-

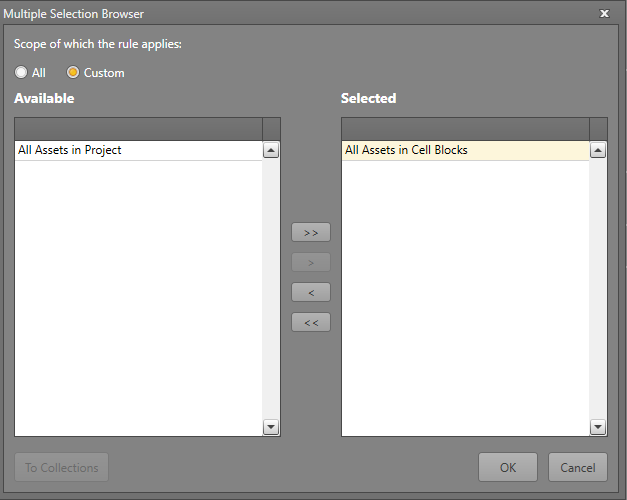

Within the Multiple Selection Browser, select the assets
to be used:
When choosing the scope for the Rule, there are two options:
- All — This Rule will apply to all assets in the project.
- Custom — This Rule will apply to a pre-configured Collection of assets.
-
Alarm Escalation is available when Post Alarms is enabled. Determine whether alarms in this Rule should escalate, and enable the toggle to allow escalation.Note: For more information, see the Alarm Escalation page.
-

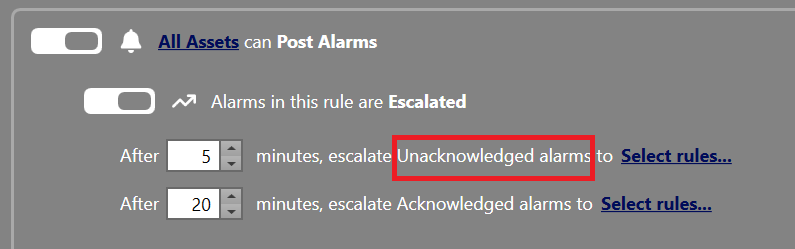

Decide whether alarms should escalate when they are unacknowledged and
specify the amount of time before escalation occurs.
-

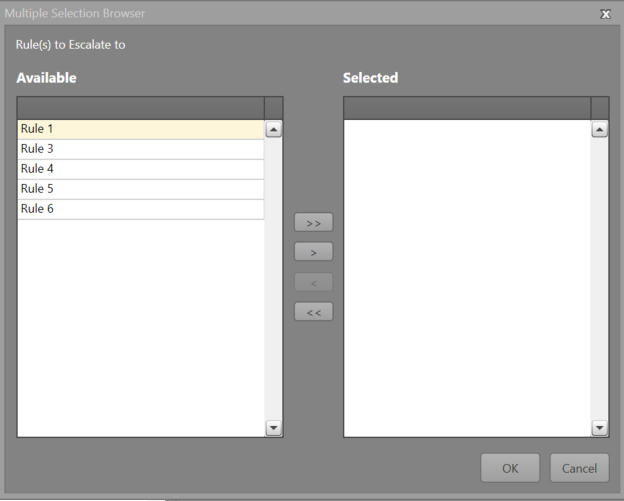

Within the Multiple Selection Browser, select the
Rule the alarm will escalate to.
Note: If a selected Rule also has escalation enabled, its timers begin when the asset appears in that Rule. -

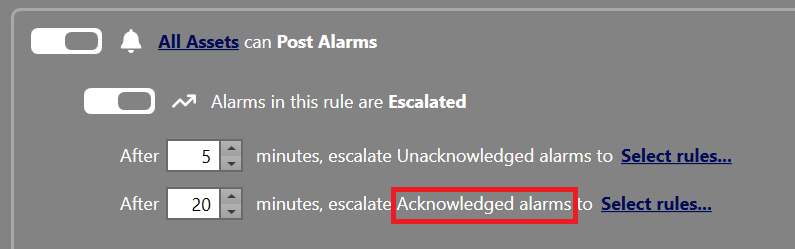

Decide whether alarms should escalate when they are acknowledged and
specify the amount of time before escalation occurs.
-
Within the Multiple Selection Browser, select the
Rule the alarm will escalate to.
-

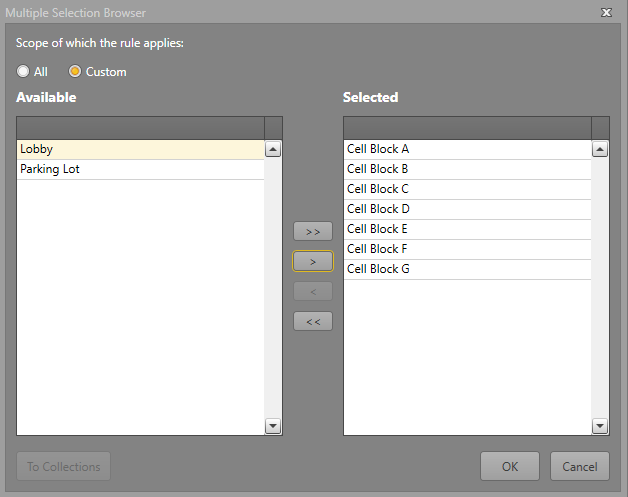

Within the Multiple Selection Browser, select the Maps
to be used:
When choosing the scope for the rule, there are three options:
- All — This Rule will apply to all Maps in the project.
- Custom — This Rule will apply to selected Maps.
-

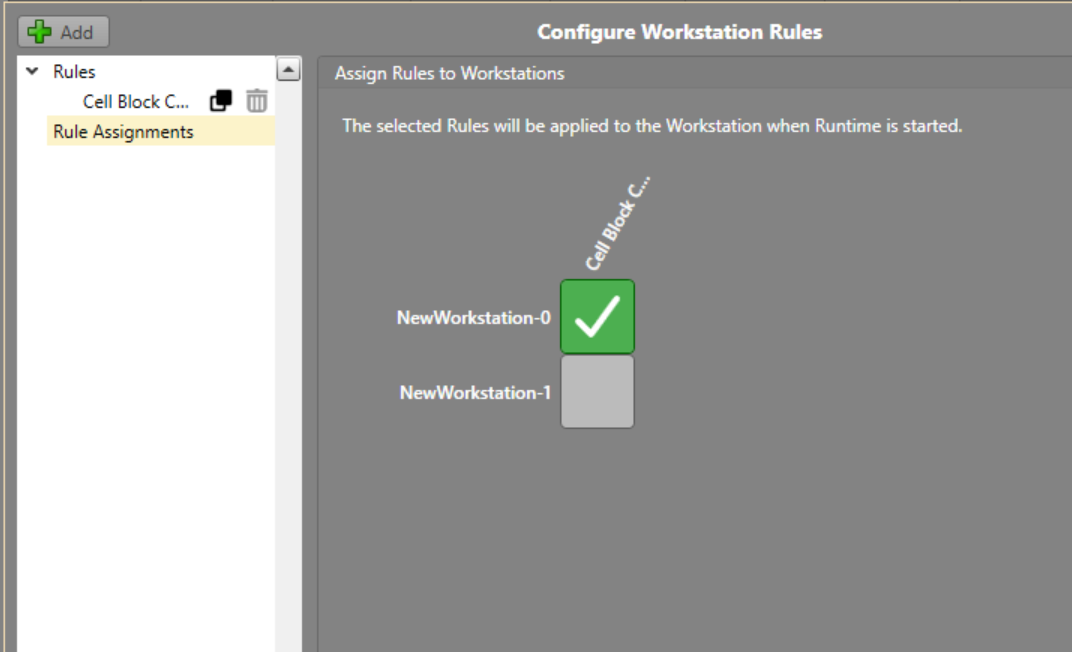

To apply it to a Workstation, navigate to Rule
Assignments, and select the required Workstation.
-

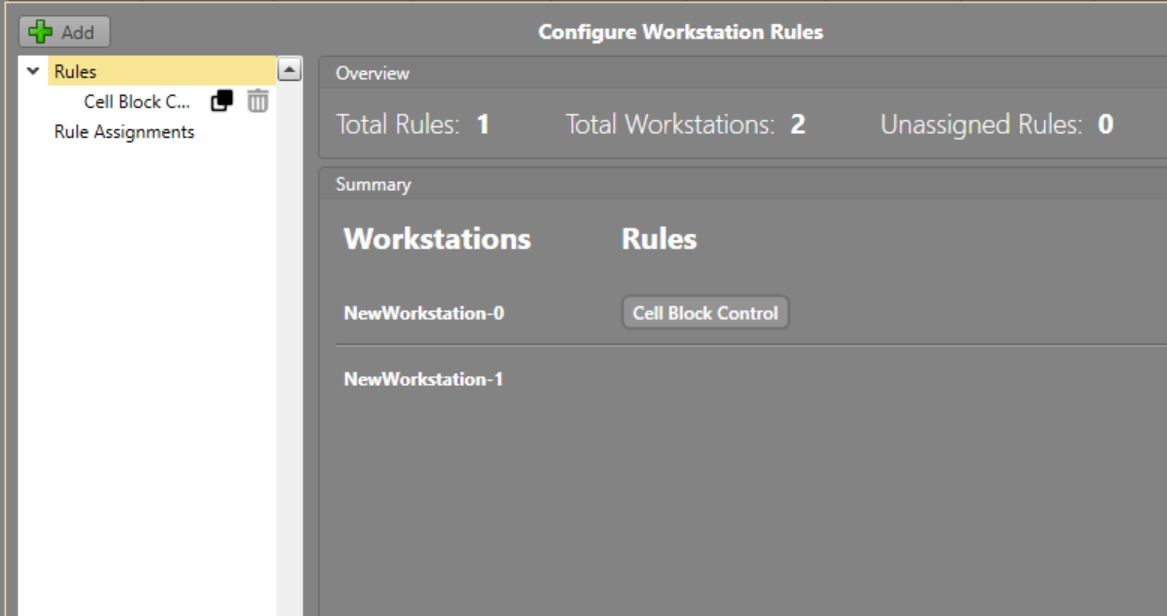

To get an overview of all the Rules and Workstations in the project, click on
the Rules tab to see the overview page:
